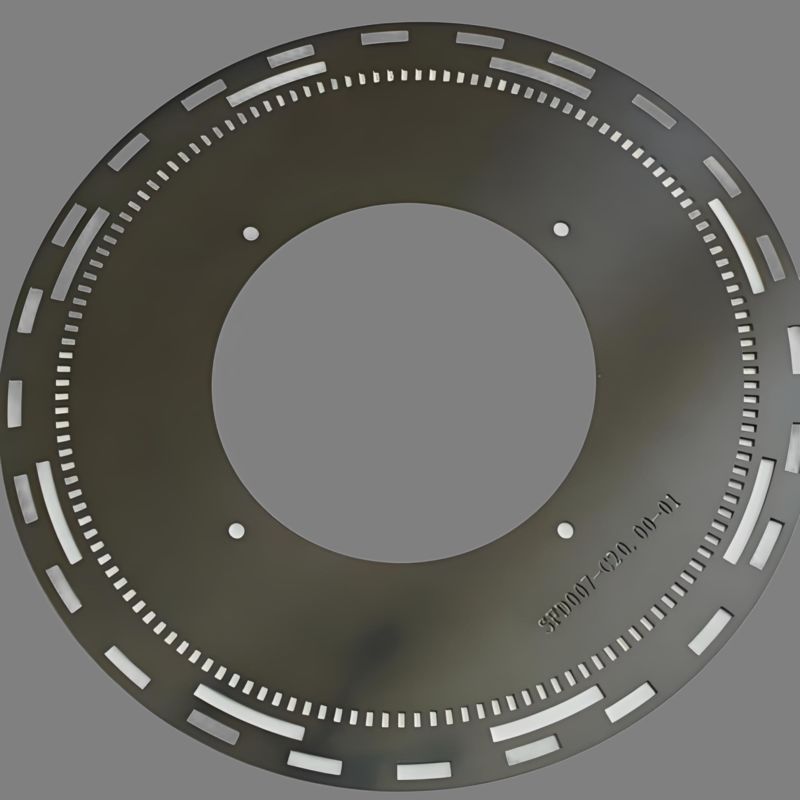

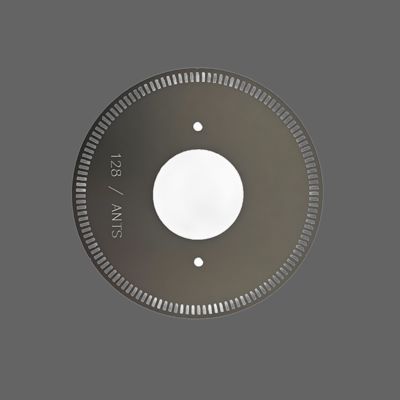

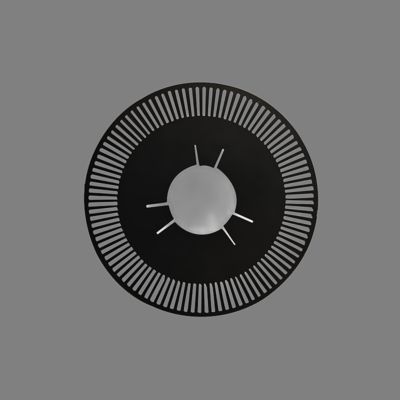

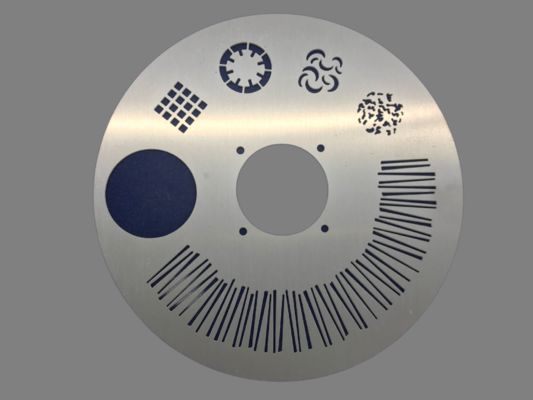

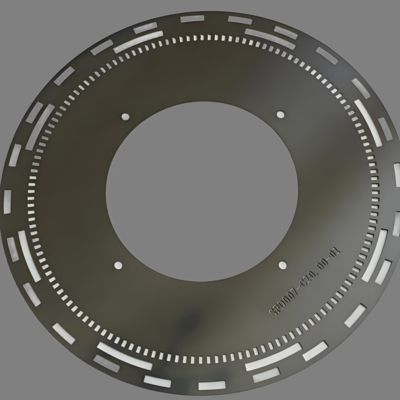

Chemical etching stainless steel encoder disk for optical encoder sensor

Name: Chemical etching stainless steel encoder disk for optical encoder sensor
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Volgens uw projectbestand
Availability: InStock

Merknaam:	customized
Modelnummer:	Volgens uw projectbestand
MOQ:	Open om te bespreken
Prijs:	open to negotiate
Betalingsvoorwaarden:	T/t
Toeleveringsvermogen:	100,0000pcs

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Shenzhen, China

Certificering:

ISO9001,ISO14000

Bewerkingsmethode:

Chemisch etsen

Verpakking:

Elk in een houtpakking

Transportpakket:

Elk in een polyzak

Handelsmerk:

Geen

HS -code:

7613405000

Materiaal:

Staal, messing, koper, aluminium

Specificatie:

Volgens uw projectbestand

Kleinste open gat:

D = 0,1 mm wanneer de dikte varieert van 0,03 mm tot 0,05 mm 1,5*dikte

Verpakking Details:

op maat gemaakt pakket

Levering vermogen:

100,0000pcs

Markeren:

stainless steel encoder disk

optical encoder sensor disk

photo etched encoder disk

Productbeschrijving

Chemical etching stainless steel encoder disk for optical encoder sensor

Encoder specification:

Machining Type	photo chemical etching stainless steel precision optical encoder disk
Material Capabilities	Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Aluminum, Alloy (Thickness from 0.03 mm up to 1 mm)
Product Dimension	220*280 mm
Product precision	0.01
Smallest open hole	D= 0.1mm when Thickness range from 0.03mm to 0.05mm 1.5*Thickness
Centre to Centre for holes	1.5*Thickness
Surface treatment	Surface treatment

Photo Etching is flexible, highly accurate and effective at any volume. The photo etching process is known by many names, including chemical etching, acid etching and photo chemical machining (PCM).

Metal Selection

Xinhaisen offer a huge range of metals for etching including: Stainless Steels, Carbon Spring Steels, Copper, Brass, Nickel Silver, Mild steel, Phosphor Bronze, Silver, Beryllium Copper, Aluminium, Nickel, Mu Metal, Alloy 42, Alloy 52 & Many Others.

Benefits of Photo Etching

Precise Tooling
The photo-tool artwork for photo chemical etching is free of charge here at xinhaisen, as we like to invest in our customers future.
Risk-Free Design
With the ability to produce rapid prototypes with short lead times, the complexity of your design is often not an issue. We will manufacture to your required drawings and to your exacting standards.
Right First Time
The chemical etching process does not use mechanical force or heat, which means that the metals properties remain unchanged. The temper of material is also not altered and parts are completely burr-free and stress-free.
No Finishing Required
Our metal etching process leaves no rough edges or burrs, therefore no additional deburring process is often required.
A variety of Thicknesses
A huge variety of different material types and thicknesses can be photo etched, ranging from 0.0127mm through to 1.60mm thick.
Tolerances From ±0.025mm
As your components features are all etched simultaneously, the complexity achievable can be impressive with profile tolerances achievable from ±0.025mm.
