High Precision Stainless Steel Photo-etched Fine Metal Filter Mesh Screen For Filtration

High Precision Stainless Steel Photo-etched Fine Metal Filter Mesh Screen For Filtration

Merknaam:	XHS/ Customized
Modelnummer:	aangepast
MOQ:	10
Prijs:	50-100USD
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	10000-100000pcs / week

Gedetailleerde informatie

Productbeschrijving

Ratings & Reviews

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

ISO 9001, ISO 14001

Materialen:

Roestvrij staal (304, 316), nikkel, koper, koper, titanium

Dikte:

0,02 mm - 1,5 mm

Tolerantie:

+/- 0,005 mm

productieproces:

Fotochemisch etsen, plateren, stempelen, lasersnijden

Oppervlakteafwerking:

metalen, van natuurlijke of elektropolies

Andere verwerking:

Platering, stempelen, lasersnijden

Verpakking Details:

PE -tassen en dozen / Aangepast

Levering vermogen:

10000-100000pcs / week

Markeren:

stainless steel photo etch mesh

fine metal filter mesh screen

high precision filtration mesh

Productbeschrijving

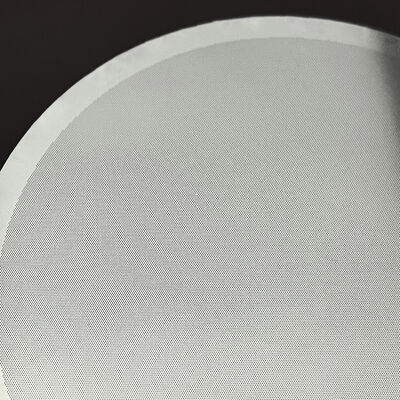

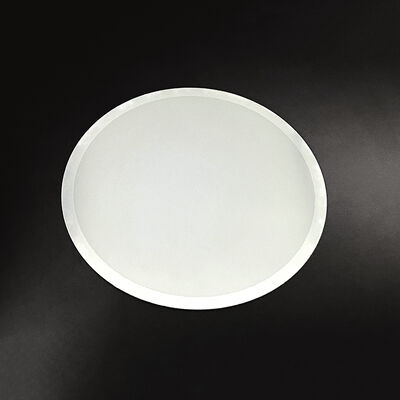

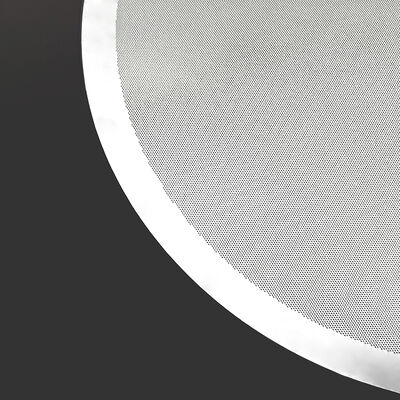

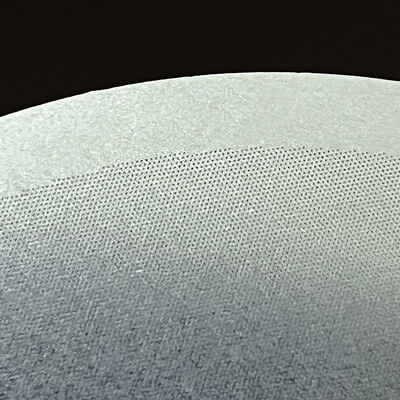

High Precision Stainless Steel Photo-etched Fine Metal Filter Mesh Screen For Filtration

Our high precision stainless steel photo-etched filter mesh screens are manufactured using advanced photo chemical etching technology, enabling the production of ultra-fine, burr-free filtration components with excellent dimensional accuracy and consistency. Compared with woven wire mesh or mechanically punched screens, chemical etching provides superior control over micro hole geometry and open area, ensuring reliable and repeatable filtration performance.

Chemical Etching Technology Advantage

Photo chemical etching is a non-contact, stress-free process that allows:

Precise and uniform micro apertures without burrs or deformation
No heat-affected zones, maintaining original material properties
High repeatability for complex and high-density hole patterns
Stable performance for thin and ultra-thin metal filters

This makes photo-etched mesh ideal for applications requiring tight filtration accuracy and long-term reliability.

Specifications of Photo Etched Metal Filter Mesh Screen:

Material	Stainless steel 304,316 or according to your request
Mesh Type	Round hole, square hole, slot hole, hexagonal, or custom design
Thickness	0.02mm-1.5mm
Tolerance	+/-0.005mm
Smallest opening	0.08mm
Sample	Available
Filter rating	100%
Surface	Bright and smooth
Process	Chemical etching
MOQ	500pcs
Feature	No burrs, no broken point and clean
Application	Metal mesh, filter mesh for coffee maker, juice machines

Secondary Processing Options

To meet complete application needs, we provide a variety of post-processing services:

Electropolishing for smoother surfaces and improved cleanliness
Chemical passivation for enhanced corrosion resistance
Forming, bending, and deep drawing
Laser cutting for outer profile accuracy
Assembly with frames or multi-layer lamination

Typical Filtration Applications

Photo-etched stainless steel filter mesh screens are widely used in:

Industrial liquid and gas filtration systems
Automotive fuel, oil, and air filters
Medical and laboratory filtration devices
Chemical processing and environmental equipment
Electronics ventilation and protection filters

With strong chemical etching expertise, strict quality control, and flexible customization capability, we deliver precision metal filter mesh solutions that meet demanding filtration standards.

How to Customize photo etched metal filter mesh screen from us?

Send Requirements
Provide material, thickness, hole size/pattern, dimensions, or drawings.
Engineering Review
We evaluate etching feasibility and optimize the design if needed.
Sample Approval
Photo-etched samples are made for testing and confirmation.
Mass Production
Stable, burr-free production after sample approval.
Secondary Processing
Optional polishing, passivation, forming, or assembly.

Ratings & Review

Algemene rating

4.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

4 stars

100%

3 stars

2 stars

1 stars

All Reviews

E*a

Mexico Nov 28.2025

Helpful (8)

The mesh made by this company is really precise and quite good. We will customize from this company again next time. It would be even better if the delivery time could be shorter.

A*d

Germany Nov 27.2025

Helpful (8)

The mesh is precise and the packaging is excellent.

M*l

United States Nov 10.2025

Helpful (26)

Product fantastic, great packaging. fast processing and delivery. Thank you
